1

The photoelectric and micro-computer systems are integrated to calculate accurately. Countable products include tablets, capsules, grains, soft capsules and transparent capsules. No mechanical parts need to be replaced or adjusted. Feeding nozzles are customized according to bottle size. With high-speed microprocessor and all Chinese/English dynamic graphics display operating system, all parameters can be set on it. Sensors are made of American chips and special optoelectronic chips, which make the whole control system precise and concise. Compared with other manufacturers, they are more suitable for multi-channel requirements. The whole circuit control system, only the sensor box, the main control box which all sealed, these two major parts are easy to replace. skilled workers only need 10 seconds

2

The double-axis cylinder is used to control the feeding, filling and releasing of bottles. The structure is simple, the adjustment is convenient and the control is stable. The filling quantity can be adjusted arbitrarily without errors. The range of single bottle filling quantity is 1-1000pcs. It is equipped with automatic rejection system of counting errors, so as to ensure the accuracy of the precise number of counting. The default filling rate is within the range of 0.1‰, and the unqualified filling quantity is more than 1 grains. It has debris reject function by Acousto-optic alarm and display information on PLC

3

With automatic counting detection and rejection device, the device can automatically reject each bottle when it detects inaccurate counting and pellets with granules. There are waste collection devices

4

The vibration frequency is adjustable and the speed is fast, so as to ensure the speed of particle separation

5

With two sets of vibrators, the vibration is stable, which can make the pill, especially the irregular piece, run smoothly and avoid miscounting

6

The sliding plate of pills adopts two or three steps, and the granules go downstream one by one. The distance between pills will be set according to the procedure, so that overlap can be avoided

7

Automatic alarm of hopper shortage and automatic shutdown by empty hopper

8

With photoelectric control device, automatic detection bottle in and start feeding, no bottle no start. When it returns to normal, the equipment will start and run automatically. When error occurs, the equipment stops and the alarm stop information is displayed on the screen. At the same time, the operation mode displayed on the screen is used to reject it

9

Nozzle can be vibrated when filling , the nozzle will firmly hold the bottle mouth to ensure that the big pill is not blocked and the small pill  not jumped out.

10

Using modular design structure and locking component of cylinder makes tool-free disassembly in real sense, which not only facilitates maintenance and avoids many potential risks, but also avoids the accidental drop of solid parts such as screw and nut caused by long-term vibration into the blanking bin and enters the bottle in the process of long-term use, thus causing serious impact on users

11

Three-stage dust collection design is adopted. Dust holes are opened on the delivery track and collected in the recovery trough to be removed by a vacuum cleaner. In addition, dust removal can be achieved by setting blowing interval time according to the density of dust through the special automatic blowing and dust removal function of the machine. According to the number of dust sensors automatically fill the light. Dust excessive self-cleaning, to ensure the accuracy of the number of particles. There is no need to clear the sensor window in the operation of the equipment, and there is no need to stop the equipment from time to time. Pill door has dust-proof function to avoid dust entering cylinder

12

PLC screen display parameters and mechanical state, with automatic fault diagnosis and real-time monitoring alarm display system. Reprogrammable computers can store up to 30 sets of production parameters and increase them to 100 sets. The system can record, save and print batch production information, and can call out and view.

13

In the normal production process, there is no need for special person to take care of the equipment and the machine has overload protection.

14

When replacing bottles of different heights, it can be realized by electric regulation and upper and lower limit switches, and controlled on touch screen

15

Cylinder gate prevents drug breaking

16

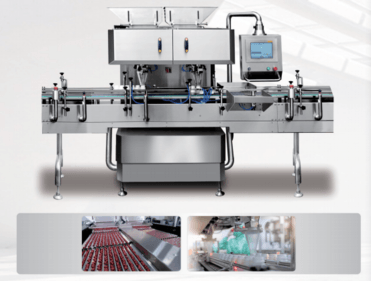

24 channels electronic counting machine, can satisfy 8 mm round pill, 100 pcs/bottle, and runs steadily at a speed of more than 60 bottles/minute. (Pls refer to the production capacity for each model)

17

The filling quantity of  bottle can be arbitrarily set at 1-200pcs

18

pill size range: tablet max ￠22mm，capsule 5#-0#. size ＜ 3mm need optioned configuration

19

Suitable for bottle mouth size 20-80 mm, bottle height 50-150 mm bottle diameter 30-80 mm, bottle volume 5-500 ml

ITEM

SPEC.

REMARK

NUMBER OF CHANNELS

24

dual feeder/ Two stage DC variable frequency vibration control system

MAX OUTPUT

12000PCS/MIN

Capacity is subject to the type and size

of the bottles and raw materials,

as well as the quantity filled per bottle

FILLING QTY

1～9999PCS

PILL SIZE

THICKNESS:3～10mm

DIA:3～13mm

LENGTH:3～21mm

size ＜ 3MM need optioned configuration

BOTTLE SIZE

DIA:20-100mm

 HEIGHT:40-240mm

Voltage/Frequency

AC220V 50/60HZ

Power consumption

1.2KW

Air pressure

0.6Mpa

Air consumption

200L/min cleaning air

OVERALL SIZE(LXWXH)

1580×1680×1770mm

VOLUME OF HOPPER

27L（left） +  27L（right）

WEIGHT

950kg
